2.2a Introducing and explaining velocity-time graphs and acceleration

This section introduces and explains how to interpret a velocity-time graph, recognising acceleration, deceleration, or constant speed or velocity from a velocity-time graph

See Part 2.3 Acceleration formula, calculations, interpreting velocity-time graphs (and a = Δv ÷ Δt)

How do you define acceleration?

How do you interpret velocity-time graphs?

How to do acceleration formula questions?

Acceleration is about change in speed or velocity of an object and is not the same as speed or velocity.

The interpretation of the seven graphs above, by considering the gradient - positive, negative or zero,

and their mathematical sign if the values of acceleration (+) or deceleration (-) are used in calculations.

acceleration is the rate of change of velocity with time

acceleration = change in velocity ÷ time taken to effect the velocity change

a (m/s²) = Δv (m/s) ÷ Δt (s)    (actual numerical calculations are dealt with further down the page)



A comparison of speed/velocity - time graphs

Graph curves upwards, velocity is increasing (+ve), but also shows increasing acceleration, speeding up at an increasing rate.





A comparison of speed/velocity - time graphs

Graph is flat, shows constant velocity/speed (+ve), zero acceleration.

e.g. Cruise control operating in a car.





A comparison of speed/velocity - time graphs

Graph shows decreasing acceleration (+ve), BUT not slowing down!, still speeding up but at a decreasing rate.

This is observed as you pull away in a car up to a maximum speed dictated by the speed limit.





A comparison of speed/velocity - time graphs

Graph is linear, shows constant or uniform acceleration (+ve), constant rate of increasing velocity.





A comparison of speed/velocity - time graphs

Graph is linear, shows constant or uniform deceleration (-ve), velocity decreasing, constant rate of deceleration.





A comparison of speed/velocity - time graphs

Graph shows decreasing deceleration (-ve), velocity decreasing, but decelerating at an increasingly slower rate.



A comparison of speed/velocity - time graphs

Graph shows increasing deceleration (-ve), velocity decreasing, but slowing down at an increasingly faster rate!

You can demonstrate this by gradually increasing the pressure on the brake pedal of a car and bringing it to sudden halt.

The seven graphs above illustrate of what you might see at any point on a velocity-time graph, BUT, in reality, any speed/velocity-time graph will be far more complicated than any one of these simple graphs. So, you may find a graph with all seven types of gradient in just one speed/velocity-time graph, like the velocity-time graph below which could represent a car journey.

---

2.2b Example questions based on velocity graph interpretation (not involving mathematical calculations)

---

Q1 The graph below describes the velocity profile of a car journey.

Analyse the graph sections indicated below and describe the motion of the car at the various stages of the journey:

a-b:

b-c:

c-d:

d-e:

e-f:

f-g:

g-h:

ANSWERS explained

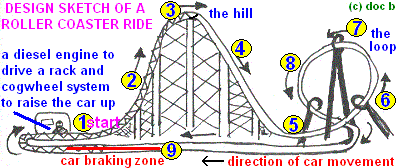

Q2 The diagram below describes a rollercoaster ride (a non-graph question)

Q2 The sketch above illustrates the design of a roller coaster ride on car to hold several people.

Using the numbers (1) to (9) and comment on energy store situations or changes ...

(a) Give two places, for the freely moving car, where acceleration or deceleration is taking place.

(b) At what points does the car have its maximum GPE?

(c) At which point are you getting the greatest increase in GPE?

(d) At which points will the car have roughly equal amounts of KE and GPE if moving freely on it own?

(e) At which points do you get deceleration?

(f) At which point do you get the maximum change of KE to increase a thermal energy store?

ANSWERS explained



Notes index on acceleration, deceleration, velocity/speed-time graphs

See Part 2.3 Acceleration formula, calculations, interpreting velocity-time graphs (and a = Δv ÷ Δt)

---

Key points about acceleration and deceleration

Information sources for Doc Brown's key points: IGCSE-GCSE physics are based on textbooks & syllabus-specifications for students taking the UK AQA, Edexcel, OCR 21st Century Science, OCR Gateway science suite, WJEC, CCEA and CIE GCSE physics 9-1 level science examinations

A structured set of summary revision notes on interpreting velocity-time graphs, tailored to the major UK GCSE/IGCSE exam boards: WJEC, CCEA, CIE, AQA, Edexcel, OCR. These notes cover core academic content and include exam tips to help students master this topic.

---

Velocity-Time Graphs: Summary Revision Notes

What a Velocity-Time Graph Shows

• X-axis: Time (s)
• Y-axis: Velocity (m/s)
• The graph shows how an object’s velocity changes over time.

---

Key Features to Interpret

Feature	Meaning	Example
Horizontal line	Constant velocity	Object moving steadily
Upward sloping line	Positive acceleration	Speeding up
Downward sloping line	Negative acceleration (deceleration)	Slowing down
Steeper slope	Greater acceleration	Rapid change in velocity
Flat line at zero	Stationary object	No movement

---

Calculations from the Graph

1. Acceleration

• Found from the gradient (slope) of the graph
• Formula:
  Acceleration} = (Change in velocity) / (Time taken)

2. Distance Travelled

• Found from the area under the graph
• Use geometry:
  • Rectangle: Area = base x height
  • Triangle: Area = 0.5 x base x height
• For irregular shapes, break into sections or use estimation

---

Common Graph Shapes

Shape	Interpretation
Triangle	Constant acceleration
Rectangle	Constant velocity
Trapezium	Combination of acceleration and constant velocity

---

Typical Exam Board Requirements

• Emphasis on interpreting gradients and calculating areas
• Expect worked examples and graph sketching
• May include negative velocity and non-linear graphs
• Focus on displacement vs. distance
• Strong focus on calculating acceleration and distance
• May include multi-stage journeys with changing motion
• Includes graphical analysis and real-world applications
• May ask for average and instantaneous acceleration

---

Student Exam Tips

• Label axes clearly when drawing graphs
• Use large gradient triangles for accurate slope calculations
• Always show working for area and gradient questions
• Look for units: velocity (m/s), time (s), acceleration (m/s²)
• Practice interpreting multi-section graphs (e.g. accelerate → constant → decelerate)
• Remember: area under the graph = distance, not displacement unless direction is considered

---

The use of velocity-time graphs

Velocity-time graphs aren’t just classroom tools—they’re powerful instruments used across industries to analyse motion, optimise performance, and ensure safety. Here’s how they show up in the real world:

---

Automotive Engineering

• Used to study acceleration and braking patterns of vehicles
• Help engineers design safer cars by analysing crash dynamics and airbag deployment triggers
• Aid in fuel efficiency testing by tracking velocity changes over time

---

Aviation and Space Exploration

• Pilots and aerospace engineers use them to:
  • Monitor takeoff and landing speeds
  • Calculate orbital velocities and manoeuvres for spacecraft
• NASA and ESA use velocity-time graphs to plan trajectory corrections and re-entry paths

---

Sports Science

• Track athletes’ speed and acceleration during sprints or races
• Used in performance analysis for sports like swimming, cycling, and baseball
• Radar guns and motion sensors generate velocity-time data to improve training

---

Physics and Engineering Research

• Model projectile motion, free fall, and oscillations
• Used in labs to study forces, friction, and energy transfer
• Help validate theoretical models with experimental data

---

Meteorology & Environmental Science

• Analyse wind velocity over time to predict storms or hurricanes
• Used in climate models to study airflow patterns and weather fronts

---

Industrial Applications

• Monitor conveyor belt speeds, robotic arm movements, and fluid flow
• Help optimise manufacturing processes and reduce mechanical wear

---

Why They Matter

Velocity-time graphs allow professionals to:

• Visualise motion clearly and quantitatively
• Calculate acceleration and displacement
• Diagnose performance issues or inefficiencies
• Make predictions about future motion

---

Velocity-time graphs allow professionals to:

• Visualise motion clearly and quantitatively
• Calculate acceleration and displacement
• Diagnose performance issues or inefficiencies
• Make predictions about future motion

---

Keywords, phrases and learning objectives for acceleration and graph work

Be able to describe, interpret and explain information from a velocity-time graphs, recognising acceleration. deceleration, constant speed and also comment on the moving object's kinetic energy and/or gravitational potential energy.

---

WHAT NEXT?

TOP of page

INDEX for physics notes on acceleration/deceleration and constructing and interpreting velocity/speed-time graphs

INDEX of all my physics notes on FORCES and MOTION

INDEX of all my physics notes on FORCES

INDEX of all my PHYSICS NOTES

email doc brown - comments - query?

BIG website, using the [SEARCH BOX] below, maybe quicker than navigating the many sub-indexes

---

Basic Science Quizzes for UK KS3 science students aged ~12-14, ~US grades 6-8

Biology * Chemistry * Physics for UK GCSE level students aged ~14-16, ~US grades 9-10

Advanced Level Chemistry for pre-university age ~16-18 ~US grades 11-12, K12 Honors

Find your GCSE/IGCSE science course for more help links to all science revision notes

SITEMAP Website content © Dr Phil Brown 2000+. All copyrights reserved on Doc Brown's physics revision notes, images, quizzes, worksheets etc. Copying of website material is NOT permitted. Exam revision summaries and references to GCSE science course specifications are unofficial.

Notes index on acceleration, deceleration, velocity/speed-time graphs

Q1 The graph below describes the velocity profile of a car journey.

Analyse the graph sections indicated below and describe the motion of the car at the various stages of the journey:

a-b: increasing acceleration,

b-c: linear/uniform/constant acceleration,

c-d: decreasing acceleration,

d-e: constant velocity, zero/no acceleration or deceleration

e-f: increasing deceleration

f-g: linear/uniform/constant deceleration,

g-h: decreasing deceleration



Q2 The diagram below describes a rollercoaster ride (a non-graph question)

Q2 The sketch above illustrates the design of a roller coaster ride on car to hold several people.

Using the numbers (1) to (9) and comment on energy store situations or changes ...

(a) Give two places, for the freely moving car, where acceleration or deceleration is taking place.

At (4) and (8) car accelerating downhill, conversion of gravitational potential energy (GPE) to kinetic energy (KE).

Deceleration takes place from (5) climbing up to point (7).

(b) At what points does the car have its maximum GPE?

At (3) and (7), the highest points you have the maximum in GPE, and (3) GPE > (7) GPE

(c) At which point are you getting the greatest increase in GPE?

At (1) => (2) => (3), the largest climb of the circuit.

(d) At which points will the car have roughly equal amounts of KE and GPE if moving freely on it own?

The descents at point (4) and point (8), assuming half-way down.

(e) At which points do you get deceleration?

Climbing up at (6) as KE store decreases and GPE store increases.

(f) At which point do you get the maximum change of KE to increase a thermal energy store?

Friction in the  braking zone <==(9)
