Interpreting and explaining the 1H NMR spectrum of 1,3,5-trimethylbenzene (mesitylene)

[Author © Dr Phil Brown GRIC, PhD: Doc Brown's advanced level organic chemistry exam revision notes suitable for students of UK A level chemistry courses & US K12 grade 11, grade 12 and AP honors chemistry courses: Molecular spectroscopy analysis of 1,3,5-trimethylbenzene [spectrum page updated RE-EDIT]

 email doc brown  Re-edit 1H NMR spectrum of C6H3(CH3)3

 This is a BIG chemistry website, PLEASE take time to explore it

 H-1 proton NMR spectroscopy - spectra index  *  [privacy policy, cookies and disclaimer]

 Links associated with 1,3,5-trimethylbenzene (mesitylene)

See also Isomers of molecular formula C9H12 (only aromatic hydrocarbons)

Introductory note on the 1H NMR spectra of 1,3,5-trimethylbenzene (mesitylene)

Students and teachers please note my explanation of the proton NMR spectrum of 1,3,5-trimethylbenzene (mesitylene) is designed for advanced, but pre-university, chemistry courses.

The chemical shift δ splitting pattern effects for 1,3,5-trimethylbenzene (mesitylene) are confined to a proton spin-spin coupling effects analysed using the n+1 rule for adjacent non-equivalent proton fields (n is the number of neighbouring protons in a non-equivalent different chemical environment for the 1,3,5-trimethylbenzene (mesitylene) molecule).

It is assumed that the integrated intensities of the 1H NMR δ chemical shifts give the ratio of the protons in the different non-equivalent chemical environments of the 1,3,5-trimethylbenzene (mesitylene) molecule.

The most common solvent used for investigating the 1H NMR spectrum of compounds like 1,3,5-trimethylbenzene (mesitylene), is CDCl3 and other deuterated solvents to avoid confusion with a 1H NMR signal, 2D (2H) has a different NMR chemical shift.

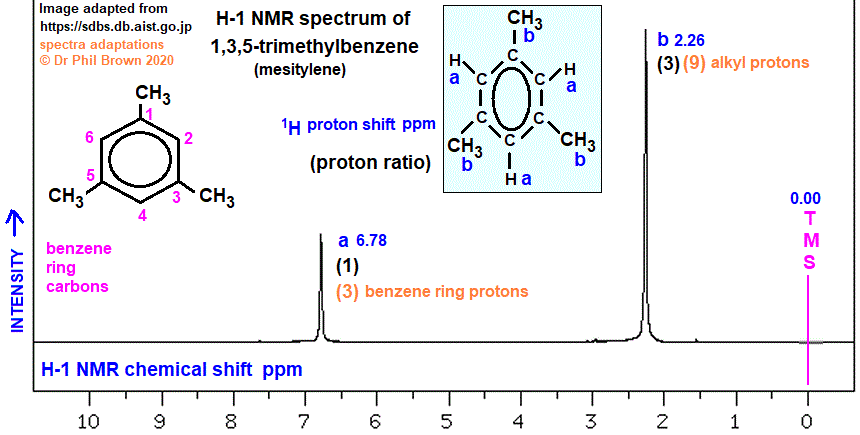

C9H12 low and high resolution H-1 proton nmr spectrum of 1,3,5-trimethylbenzene (mesitylene) analysis interpretation of chemical shifts ppm spin spin line splitting diagram H1 1-H nmr for 1,3,5-trimethylbenzene (mesitylene) doc brown's advanced organic chemistry revision notes

TMS is the acronym for tetramethylsilane, formula Si(CH3)4, whose protons are arbitrarily given a chemical shift of 0.0 ppm. This is the 'standard' in 1H NMR spectroscopy and all other proton shifts, called chemical shifts, depend on the individual (electronic) chemical environment of the hydrogen atoms in an organic molecule - 1,3,5-trimethylbenzene (mesitylene) here.

The chemical shifts quoted in ppm on the diagram of the H-1 NMR spectrum of 1,3,5-trimethylbenzene (mesitylene) represent the peaks of the intensity of the chemical shifts of (which are often groups of split lines at high resolution) AND the relative integrated areas under the peaks gives you the ratio of protons in the different chemical environments of the 1,3,5-trimethylbenzene (mesitylene) molecule.

structural formula 1,3,5-trimethylbenzene mesitylene molecular structure molecular formula C9H12 C6H3(CH3)3

The molecular structure and naming of aromatic compounds

Interpreting the H-1 NMR spectrum of 1,3,5-trimethylbenzene (mesitylene)

Because of the symmetry of the molecule, the hydrogen atoms (protons) of 1,3,5-trimethylbenzene (mesitylene) can only occupy 2 different chemical environments so that the low/high resolution NMR spectra should show only 2 peaks of different 1H NMR chemical shifts (diagram above for 1,3,5-trimethylbenzene (mesitylene)).

Although there are 12 hydrogen atoms in the molecule, there are only 2 possible different chemical environments for the hydrogen atoms in 1,3,5-trimethylbenzene (mesitylene) molecule - a very symmetrical molecule.

The integrated signal proton ratio 1:3 observed in the high resolution H-1 NMR spectrum, corresponds with the structural formula of 1,3,5-trimethylbenzene (mesitylene) in terms of the aryl:alkyl protons.

The high resolution H-1 NMR spectrum of 1,3,5-trimethylbenzene (mesitylene)

The ppm quoted on the diagram represent the peak of resonance intensity for a particular proton group in the molecule of 1,3,5-trimethylbenzene (mesitylene) - since the peak' is at the apex of a band of H-1 NMR resonances due to spin - spin coupling field splitting effects - see high resolution notes on 1,3,5-trimethylbenzene (mesitylene) below.

(a) 1H Chemical shift 6.78 ppm resonance from the benzene ring protons.

All three aromatic protons are equivalent and no significant splitting observed, so a singlet peak is observed.

(b) 1H Chemical shift 2.26 ppm from the methyl protons, so a singlet peak is observed.

All nine alkyl protons are equivalent and no significant splitting observed, so again, a singlet peak is observed.

What you get from the spectrum is a ratio of 1:3 (3:9 in actual proton numbers) for aryl:alkyl protons in 1,3,5-trimethylbenzene.

The relatively small number of 1H NMR chemical shifts is due to the very high symmetry of the 1,3,5-trimethylbenzene molecule (mesitylene).

Adding D2O to the sample under investigation, dissolved in CDCl3, makes no difference to the 1H NMR spectrum of 1,3,5-trimethylbenzene (mesitylene) because there are no labile protons to exchange with deuterium (2H) e.g. as in alcohols (O-H) or amines (N-H).

The splitting pattern from proton spin-spin coupling effects is analysed using the n+1 rule for adjacent non-equivalent proton fields (n is the number of neighbouring protons in a non-equivalent different chemical environment).

Number of directly adjacent protons 1H causing splitting Splitting pattern produced from the n+1 rule on spin-spin coupling and the theoretical ratio of line intensities
0 means no splitting             1
1 creates a doublet           1   1
2 creates a triplet         1   2   1
3 creates a quartet       1   3   3   1
4 creates a quintet     1   4   6   4   1
5 creates a sextet   1   5   10   10   5   1
6 creates a septet 1   6   15   20   15   6   1
